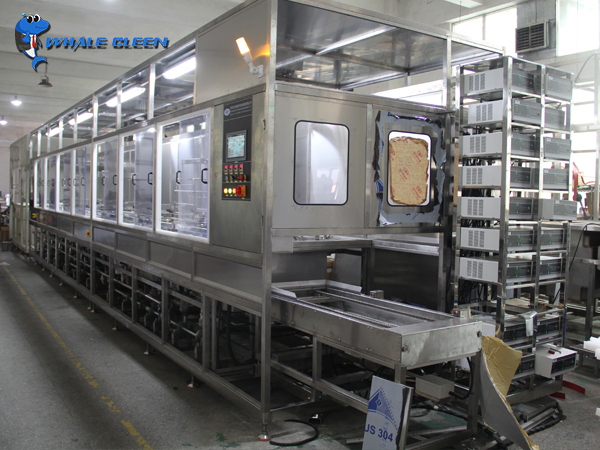

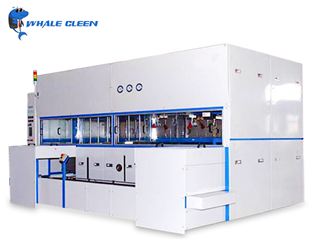

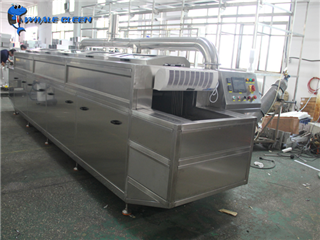

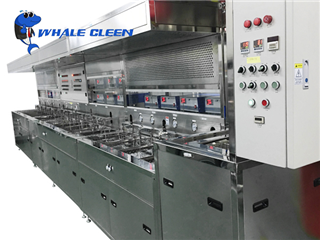

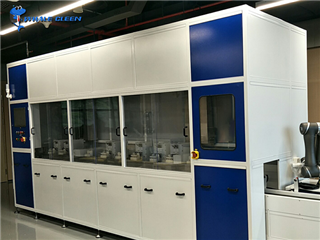

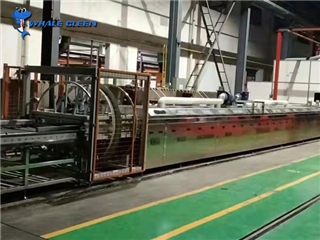

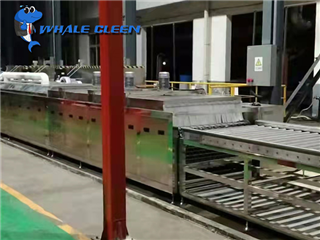

Mechanical Arm Type Automatic Ultrasonic Cleaning Machine For Hardware Industry

Automatic Ultrasonic Cleaning Machine

Product Features:

1. Heating and automatic temperature control system.

2. The workpiece in turn in the ultrasonic rough cleaning, ultrasonic rinsing after the workpiece.

3. The solution in the rough wash tank overflows to the storage compartment through the surface, and then is pumped again into the wash tank (the overflow tank opposite the overflow tank) by a filter circulation pump, thus circulating to ensure the cleanliness of the solution in the tank body. The manipulator can choose single-arm, double-arm, multi-arm automatic control operation, in turn or synchronous transport cleaning workpiece 3, the whole machine automatically feed and discharge, cleaning and drying process is completed in one time.

4. Equipped with throwing device, choose mother cleaning basket to combine, improve cleaning efficiency.

5. Clean and beautiful machine, with liquid level protection, with overload, overheat, leakage and other related protection, high reliability.

6. The whole machine adopts a fully sealed structure, the equipment has filtration circulation system, automatic temperature control system, hot air circulation drying system, liquid replenishment and drainage system, absorption and fog recovery device, etc. , can provide design drawings and cleaning program.

This product support non-standard custom, can provide design drawings and cleaning program

+86 15007557067

Online Chat Message
Product Details:

Blue whale hardware industry with mechanical arm fully automatic ultrasonic cleaning machine, cleaning process: feeding → process tank → ultrasonic medicament cleaning → ultrasonic medicament cleaning → ultrasonic DI water cleaning → ultrasonic DI water rinsing → ultrasonic DI water rinsing → DI water slowly dewatering → drying → drying → drying → blanking.

The equipment is a water-based cleaning machine, which adopts suspension transportation and consists of multi-position functional tanks to form a continuous cleaning production line to remove the oil, dust, debris and other attachments on the workpiece to obtain a clean workpiece, to make the workpiece meet the specified process requirements. This equipment is a precision cleaning equipment, it is the use of water-based cleaning agent on the need to clean the precision of the workpiece.

According to the requirements of cleaning process, low alkaline cleaning solution can be prepared with clean water. Make water activation (saponification) , reduce the surface swelling force of water and improve its activation ability, so as to attach to the surface of the workpiece oil, dust, debris, etc. wet, penetrate to the surface of the workpiece and be cleaned, to get a satisfactory degree of rinsing.


Mainly used in machinery, electronics, jewelry, optics, medicine, painting, steam and vacuum coating pre-treatment and other related categories.

For the surface shape of complex parts, such as the parts above the groove, slit, blind hole, deep hole cleaning has an efficient and rapid cleaning role. At the same time, the utility model can clean the oil, rust and oxide on the surface of the parts, and realize one-stop processing of cleaning, spraying and drying.Mechanical Arm Type Automatic Ultrasonic Cleaning Machine For Hardware Industry

Before Purchase:

1、Determine the model
You can choose model through consultation. You can also understand the specifications and parameters and choose the model through the website. Our company can customize according to customer requirements. Welcome to the factory for inspection.

You can use telephone, online chat, messages, e-mail and other ways to get price and delivery term from sales manager.

3、Sign the contract
With product details and payment methods.

Payment will be made in accordance with the terms of the contract. Timely delivery will be arranged after payment.

When you receoved the machine, please check whether the outer packaging and goods are damaged. Also check the product model and quantity, as well as accessories. If the above happens, please take photos and contact with the sales staff.

6、After-sales service
1. Provide door-to-door installation and commissioning, technical personnel free guidance training;
2. After receiving feedback, we will give you response within 12 hours. We will come back to you with the solution within 36 hours;
3. We promise warranty for 18 months and provide to life-long maintenance. So you don’t need to worry about the after sales.
