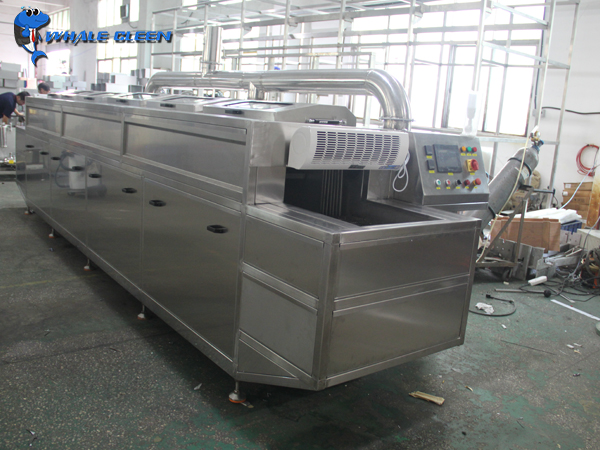

Net Belt Type Ultrasonic Cleaning Machine

Automatic Ultrasonic Cleaning Machine

Product Features:

1, net belt type ultrasonic cleaning machine functional unit: ultrasonic cleaning vibration plate and body using separate structure, easy to use, easy to maintain and repair. Ultrasonic cleaning vibration plate and cleaning tank are using high-quality stainless steel plate, more corrosion-resistant. Ultrasonic cleaning transducer using 28 khz, 40 khz and other different frequencies, cleaning speed, cleaning effect is good. It is suitable for cleaning workpieces with complicated shape, many crevices and dirt, which are not easy to be cleaned by conventional methods.

2. Set up the solvent heating and temperature automatic thermostatic device, temperature control range: room temperature-95 °C.

3. The net belt type ultrasonic cleaning machine is equipped with automatic spray device and air knife dehydrating system, which can wash the workpiece and cut water in time.

4. The net belt type ultrasonic cleaning machine equipment has set up the drying heating and the temperature automatic constant temperature device, further to the workpiece drying treatment.

5. The net belt type ultrasonic cleaning machine is driven by the speed regulating motor controlled by the electromagnetic governor, with low noise, adjustable running speed and stable running. This product support non-standard custom, can provide design drawings and cleaning program.

This product support non-standard custom, can provide design drawings and cleaning program

+86 15007557067

Online Chat Message
Product Details:

The use of special mesh chain transmission transmission workpiece, with spray cleaning, ultrasonic rough cleaning, ultrasonic rinsing, water rinsing, passivation, water rinsing, high-pressure water cutting, drying and other functions of a new continuous cleaning passivation drying equipment. The work piece is placed on the special transmission net chain manually, and when working, the cleaning work piece is placed on the conveyor belt, through the cleaning room, the cleaning room, the rinsing room, the passivation room, the passing water room, the cutting water room, the drying room, completes the cleaning, the rinsing, the passivation, the water rinses, the air-drying, the drying and so on, the machine has the advantages of multi-position, complete function, reasonable structure, convenient operation and good cleaning effect, which can improve the working environment and save labor force for the cleaning of assembly line parts, it is of great significance to improve the quality of cleaning, passivation and blow drying.


Blue whale net belt type ultrasonic cleaning machine, mainly used in machinery, electronics, jewelry, optics, medicine, painting, steam and vacuum coating pre-treatment and other related categories.

For the surface shape of complex parts, such as the parts above the groove, slit, blind hole, deep hole cleaning has an efficient and rapid cleaning role. At the same time, the utility model can clean the oil, rust and oxide on the surface of the parts, and realize one-stop processing of cleaning, spraying and drying.Net Belt Type Ultrasonic Cleaning Machine

Before Purchase:

1、Determine the model
You can choose model through consultation. You can also understand the specifications and parameters and choose the model through the website. Our company can customize according to customer requirements. Welcome to the factory for inspection.

You can use telephone, online chat, messages, e-mail and other ways to get price and delivery term from sales manager.

3、Sign the contract
With product details and payment methods.

Payment will be made in accordance with the terms of the contract. Timely delivery will be arranged after payment.

When you receoved the machine, please check whether the outer packaging and goods are damaged. Also check the product model and quantity, as well as accessories. If the above happens, please take photos and contact with the sales staff.

6、After-sales service
1. Provide door-to-door installation and commissioning, technical personnel free guidance training;
2. After receiving feedback, we will give you response within 12 hours. We will come back to you with the solution within 36 hours;
3. We promise warranty for 18 months and provide to life-long maintenance. So you don’t need to worry about the after sales.
