Crawler Type Ultrasonic Cleaning Machine

Automatic Ultrasonic Cleaning Machine

Product Features:

1, cleaning process by touch screen + PLC programmable automatic control.

2. Air knife water cutting + hot air circulation drying device.

3, the whole machine is made of stainless steel, automatic transmission of stainless steel mesh belt, smooth operation.

4, the use of special mesh chain transmission transmission of workpiece, with ultrasonic rough cleaning, ultrasonic cleaning, bubble over water, cutting water, drying, and other functions of continuous cleaning and drying equipment.

5, high-speed fan to ensure that the drying box to fully use the heat, uniform temperature. This product support non-standard custom, can provide design drawings and cleaning program

This product support non-standard custom, can provide design drawings and cleaning program

+86 15007557067

Online Chat Message
Product Details:

equipment mainly spray cycle filter system, spray system, wind cutting system, chain stepless speed control system and other functions, the whole cleaning process automatically completed, stable and reliable operation, to achieve the best spray cleaning effect.

Cleaning process: feeding → air cutting → spraying hydrocarbon cleaning 1→ air cutting → spraying hydrocarbon cleaning 2→ air cutting → spraying hydrocarbon cleaning → air cutting → spraying rust preventing oil → air cutting → hot air drying → cutting.

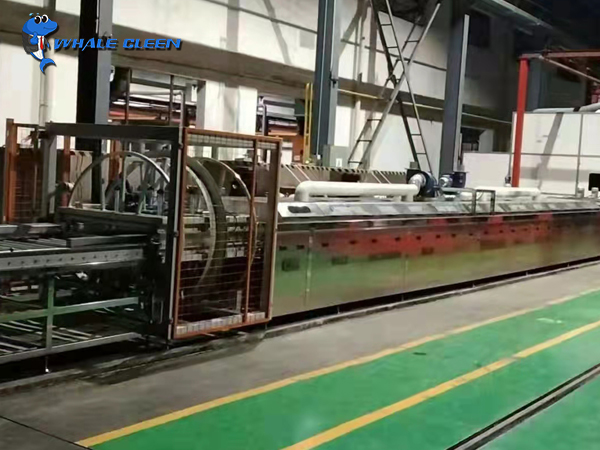

The transducer of the crawler type ultrasonic cleaning machine is fixed on the bottom plate of the cleaning tank, and a liquid is added into the tank. Will be washed down by the surface of the dirt, which is numerous small and dense bubble burst when the shock wave phenomenon. As a result, the machine immersed in the liquid under the object, with a strong penetration of solid and extraordinary cleaning, as long as the object in the liquid, both inside and outside the surface can be cleaned.

Blue Whale track type ultrasonic cleaning machine, mainly used in mechanical, electronic, jewelry, optical, pharmaceutical, coating, auto maintenance and vacuum coating pre-treatment and other related categories. For parts with complex surface shapes, such as grooves, slits, blind holes and deep holes on parts, it has an efficient and rapid cleaning effect. At the same time, it can clean off the oil, rust and oxide on the surface of the parts, and realize the one-stop treatment of cleaning spray drying.4.jpg
Before Purchase:

1、Determine the model
You can choose model through consultation. You can also understand the specifications and parameters and choose the model through the website. Our company can customize according to customer requirements. Welcome to the factory for inspection.

You can use telephone, online chat, messages, e-mail and other ways to get price and delivery term from sales manager.

3、Sign the contract
With product details and payment methods.

Payment will be made in accordance with the terms of the contract. Timely delivery will be arranged after payment.

When you receoved the machine, please check whether the outer packaging and goods are damaged. Also check the product model and quantity, as well as accessories. If the above happens, please take photos and contact with the sales staff.

6、After-sales service
1. Provide door-to-door installation and commissioning, technical personnel free guidance training;
2. After receiving feedback, we will give you response within 12 hours. We will come back to you with the solution within 36 hours;
3. We promise warranty for 18 months and provide to life-long maintenance. So you don’t need to worry about the after sales.
