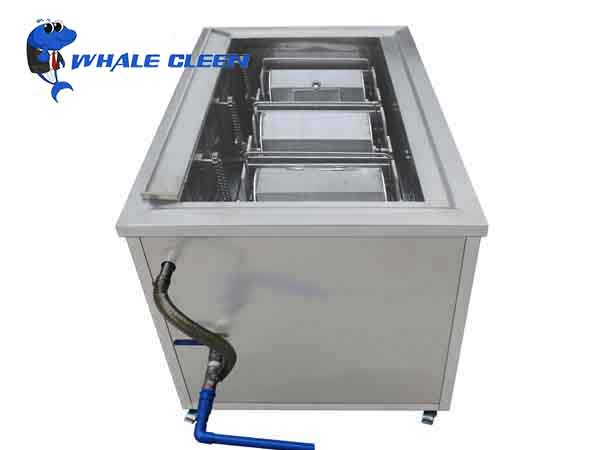

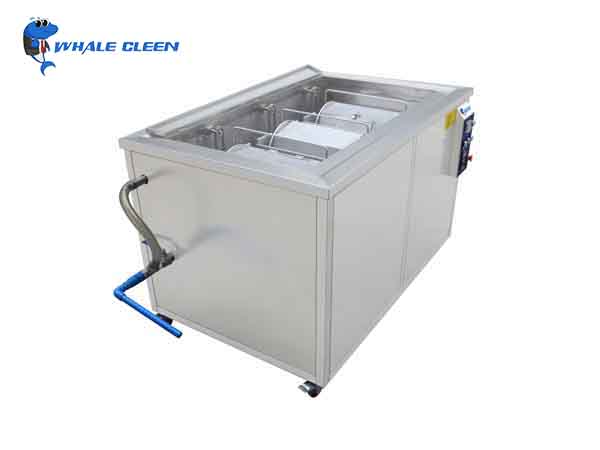

Rotary drum ultrasonic cleaning machine

Custom Ultrasonic Cleaner

Product Features:

1, rolling clean no dead angle, can make cleaning liquid and dirt contact more thoroughly, the water molecules in the rolling machine and the joint action of ultrasonic high-speed movement, on the surface of the impact of blasting stains, so that the cleaning effect is cleaner.

2, cycle filter high efficiency cleaning, using high density absorbent cotton filter core, filtering accuracy 10 microns, filter oil pollution magazine to avoid 2 pollution lead to repeated cleaning. 3,28kHz industrial cleaning, 28000 times per second low frequency vibration, high energy conversion rate; imported industrial vibrator, stable performance, strong power; multi-core vibrator synchronous work, cleaning effect beyond imagination.

4, heating drying efficiency doubled, after the workpiece is cleaned, put into the drying trough, heating pipe generated high temperature through the blower circulation blowing, so that the cleaning products quick dehydration drying, improve work efficiency.

5, remote control generator, power switch, time regulation, power regulation and other functions can be carried out on the portable generator remote control, more convenient to use.

6, the electronic control system, the operation button design more humanization, the operation is simple, at a glance.
This product support non-standard custom, can provide design drawings and cleaning program

+86 15007557067

Online Chat Message
Product Details:

The main body of the drum-type cleaning machine is the drum, its rotation can make the material inside the drum self-rolling mutual friction and friction with the wall of the drum, so that the surface of dirt stripping. But these functions are just mechanical aids in the cleaning operation.

Therefore, this kind of cleaning machine needs and drench water, spray water or soak to cooperate. There are two types of drum drive: one is in the outer wall of the drum at both ends equipped with a roller ring.

The drum (through the roller) is supported by a supporting wheel mounted on the rack at a fixed obliquity angle (3 °-5 °) and driven by a transmission device. The spray pipe can be installed above the inner side of the drum; the other is installed in the drum (fixed by the structure of the banner) axis, drive device to drive the Axis so as to drive the drum rotation.

In this type of ultrasonic cleaner, the spray hose can only be mounted on the outside of the drum. When the material is cleaned, the material enters the drum from the feeding hopper, rolls and rubs with the drum, and the water spray is used to wash the material, so that the dirt and silt on the surface of the material fall off, the screen mesh holes of the drum are discharged with the spray water through the drainage bucket.

Blue whale drum type ultrasonic cleaning machine, with ultrasonic, bubble, rotation, circulation, blowing, drying, automatic mechanical arm transfer functions, one-time feeding fully automatic cleaning and drying process. Good cleaning effect, high capacity and other advantages, suitable for all kinds of complex shape of small metal parts cleaning, specific can be customized according to customer requirements.

mainly used in machinery, electronics, jewelry, optics, medicine, painting, steam and vacuum coating pre-treatment and other related categories.

For the surface shape of complex parts, such as the parts above the groove, slit, blind hole, deep hole cleaning has an efficient and rapid cleaning role. At the same time, the utility model can clean the oil, rust and oxide on the surface of the parts, and realize one-stop processing of cleaning, spraying and drying.

Before Purchase:

1、Determine the model
You can choose model through consultation. You can also understand the specifications and parameters and choose the model through the website. Our company can customize according to customer requirements. Welcome to the factory for inspection.

You can use telephone, online chat, messages, e-mail and other ways to get price and delivery term from sales manager.

3、Sign the contract
With product details and payment methods.

Payment will be made in accordance with the terms of the contract. Timely delivery will be arranged after payment.

When you receoved the machine, please check whether the outer packaging and goods are damaged. Also check the product model and quantity, as well as accessories. If the above happens, please take photos and contact with the sales staff.

6、After-sales service
1. Provide door-to-door installation and commissioning, technical personnel free guidance training;
2. After receiving feedback, we will give you response within 12 hours. We will come back to you with the solution within 36 hours;
3. We promise warranty for 18 months and provide to life-long maintenance. So you don’t need to worry about the after sales.
