Gantry arm ultrasonic cleaning machine

Custom Ultrasonic Cleaner

Product Features:

1, Use PLC control and touch screen operation. Select imported components assembled into the manipulator. It has high positioning accuracy, smooth action, reliable operation, compact structure.

2, The manipulator of the gantry arm can be controlled automatically. It cleans the workpiece in turn or synchronously.

3, Equipped with a throwing device, combine a couple of cleaning baskets in one load, improve cleaning efficiency.

4, The machine is clean and beautiful, with liquid level protection, overload, overheating, leakage and other related protection, high reliability.

5. The whole machine adopts a full-sealed structure. It is equipped with a filtration circulation system, automatic temperature control system, hot air circulation drying system, liquid replenishment and drainage system, absorption and fog recovery device, and other systems.

6, The machine automatically feed and discharge. It has high automation procedures.  The cleaning and drying process can be completed at one time. It has a simple and safe operation.
This product support non-standard custom, can provide design drawings and cleaning program

+86 15007557067

Online Chat Message
Product Details:

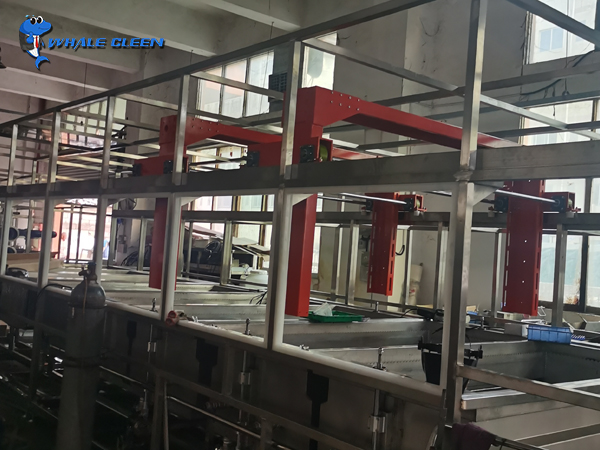

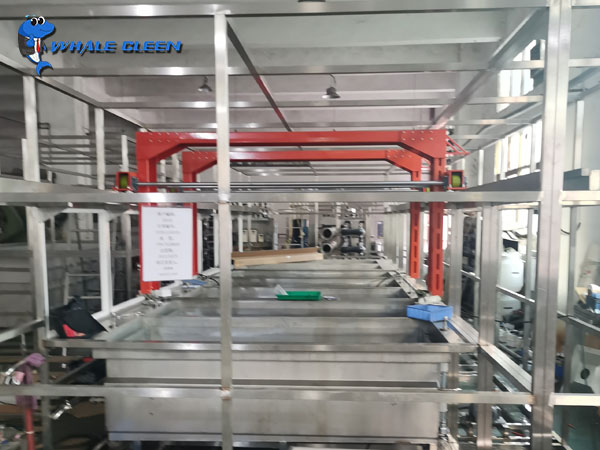

Blue whale Gantry arm ultrasonic cleaning machine is fully automatic. The cleaning process was micro-controled. It has 5 tanks made of SUS316 including cleaning tank, rinsing tank and drying tank to work continuously.

 The operator places the cleaning basket with the workpiece on the feeding roller. And the conveying roller sends the cleaning basket to the feeding station. And the manipulator sends the cleaning basket to each cleaning tank in turn. And then the parts will go through hot-dip cleaning, ultrasonic rough cleaning, ultrasonic fine cleaning, steam bath cleaning and hot-air drying. The rotating mechanism of the cleaning basket will be kept while the machine is in the process of hot dipping, ultrasonic rough washing, ultrasonic fine washing, steam bath washing and hot air drying from first tank to fifth tank. So that the workpiece is fully cleaned, the cleaning basket is always in a rotating state during the lifting process. And stays in the frozen zone for a period of time. So that the cleaning liquid is separated from the workpiece and flows back to the cleaning tank. The transverse moving mechanism is responsible for moving the workpiece to a work station. The discharge conveying roller will send the cleaned workpiece to the outlet. The operator will unload the workpiece at the outlet. Open the basket and put the workpiece into the container, the cleaning is finished.


Gantry arm ultrasonic cleaning machine is mainly used in machinery, electronics, jewelry, optics, medicine, coating, steam and vacuum coating pre-treatment, and other related categories. For the surface shape of complex parts, such as the parts above the groove, slit, blind hole, deep hole cleaning has an efficient and rapid cleaning role. At the same time, the utility model can clean the oil, rust, and oxide on the surface of the parts, and realize one-stop processing of cleaning, rinsing, and stirring.

Before Purchase:

1、Determine the model
You can choose model through consultation. You can also understand the specifications and parameters and choose the model through the website. Our company can customize according to customer requirements. Welcome to the factory for inspection.

You can use telephone, online chat, messages, e-mail and other ways to get price and delivery term from sales manager.

3、Sign the contract
With product details and payment methods.

Payment will be made in accordance with the terms of the contract. Timely delivery will be arranged after payment.

When you receoved the machine, please check whether the outer packaging and goods are damaged. Also check the product model and quantity, as well as accessories. If the above happens, please take photos and contact with the sales staff.

6、After-sales service
1. Provide door-to-door installation and commissioning, technical personnel free guidance training;
2. After receiving feedback, we will give you response within 12 hours. We will come back to you with the solution within 36 hours;
3. We promise warranty for 18 months and provide to life-long maintenance. So you don’t need to worry about the after sales.
