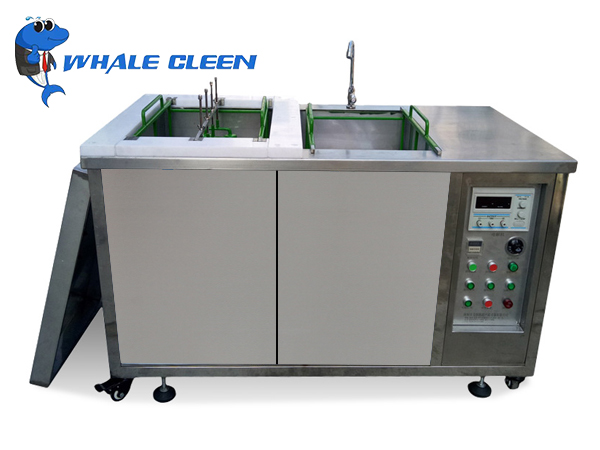

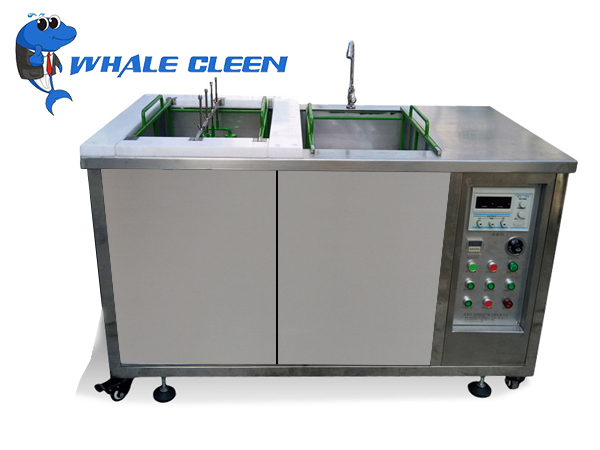

The electrolytic ultrasonic cleaning system of blue whale double tank mould is composed of ultrasonic generating system, electrolytic circuit system, circulating filter system, special electrolytic cleaning agent and water-based antirust agent. The first tank is a cleaning tank and the second tank is a rinsing tank.
1, mold type: injection mold, instrument precision mold, connector mold, precision seal mold, stamping mold, molding mold, etc. .

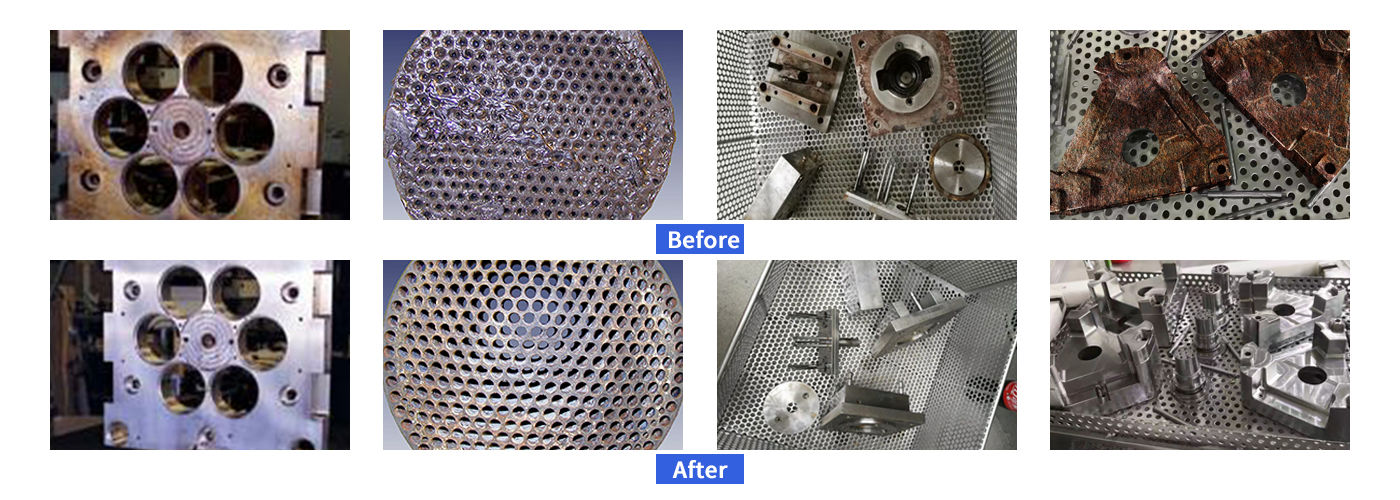

2, mold gas residue layer, high temperature formed sulfide, fire plastic residue, toner residue, mold surface oxide, as well as a variety of mold rust stains, oil stains, etc. .

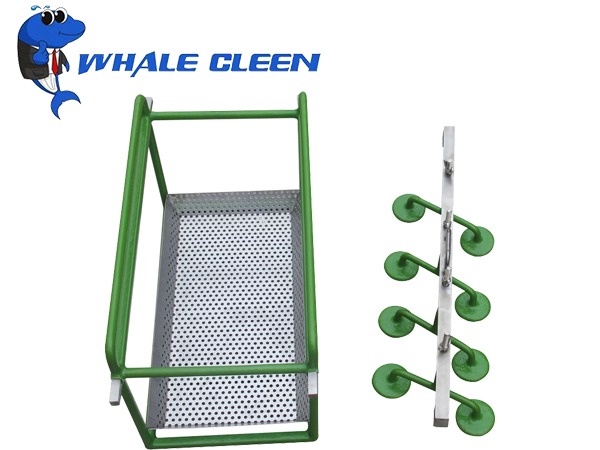

How it works: use the die or workpiece to be cleaned as the cathode (just put it into the cleaning frame) , and use the standard electrode bar as the anode. Oxygen is produced at the anode and hydrogen is produced at the cathode by the action of electrolyzing water. During the operation, a large amount of hydrogen gas is produced on the surface of the work piece, which makes the dirt decompose and peel off quickly from the surface of the work piece. Carry on impact blasting to the dirt on the work piece, make the dirt to peel off automatically. At the same time, a special cleaning solution 102C is used to make the dirt decompose rapidly after sufficient chemical reaction. In this way, even if it is difficult to clean parts such as the mold internal groove, groove, horn, hole, bite flower and other complex parts, will be cleaned clean, the mold from the inside to the outside show a brilliant metallic luster. Wash out of the mold, rinse clean with water, and then steel special water-based anti-rust Agent Immersion. The antirust agent can quickly remove moisture from the mold surface and form a protective layer on the mold surface. It can be preserved or reprocessed after air-drying. Remanufacturing does not produce carbides that adhere to the mold.
