Product Features:
1, Microcomputer Control Design: by man-machine interface adjustment, PLC control.
2, the man-machine interface displays the date of manufacture, the digital memory and the set ultrasonic frequency.
3. Set three ultrasonic frequencies (40KHZ, 80KHZ, 132KHZ) to convert automatically in the man-machine interface.
4. Set the ultrasonic working time of three frequencies in the man-machine interface.
5. Set the single frequency ultrasonic working time in the man-machine interface. 6. Set the ultrasonic power in the man-machine interface and adjust it stepless.
7. Set the heating temperature in the man machine interface.

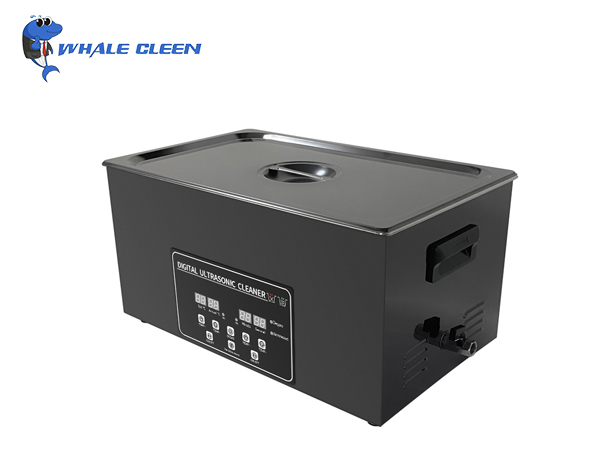

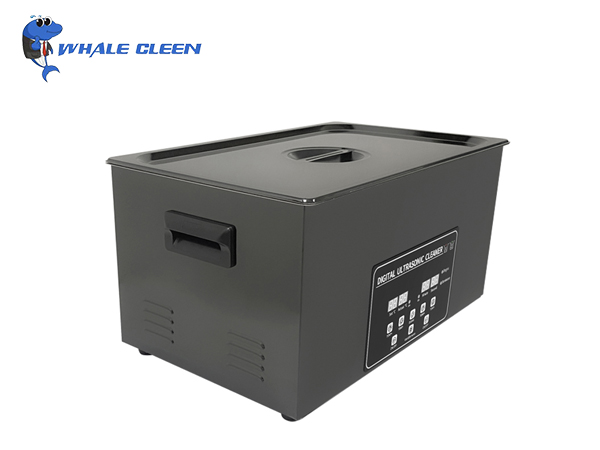

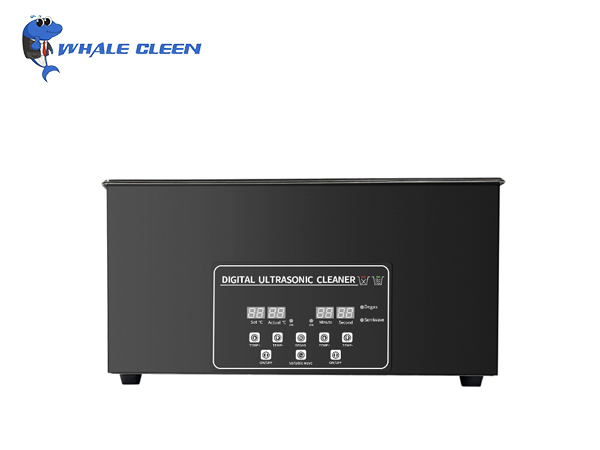

Blue Whale tri-frequency laboratory ultrasonic cleaning machine instrument, made of all stainless steel, adjusted by the man-machine interface, PLC control. The equipment is a kind of has three different ultrasonic frequencies, reasonable alternating conversion work, so that the cleaning objects in the cleaning machine to complete the whole process of rough washing, cleaning, fine, cleaning of different properties of dirt, successfully overcome the dead corners and blind spots in the cleaning; this cleaning machine can be for different cleaning materials or dirt to choose different frequency cleaning, to achieve a multi-purpose characteristics.
| Blue whale three-frequency laboratory ultrasonic cleaning equipment | |||||||||||||
| Model |
tank size |
machine size |
capacity |
tank material |
package material |
ultrasonic frequency |
generator |
ultrasonic cleaner |
heating power |
time control |
power supply requirement |
machine net weight |
machine gross weight |
| LanJ-3D04 |
350*250* 200mm |
470*490*600mm | 15L |
Stainless steel 304L, thickness 2mm, vibration plate thickness 2.5 mm, electroplating hard chromium treatment |
Stainless steel 304 wire drawn plate, 1mm thickness, edge strengthening |
28KHz/40KHz/68KHZ/80KHZ/132KHZ（
frequency is optional ） |
4 |
240W |
500W |
1~30mn |
AC220/240V，50/60Hz，10AMP | 18kg | 23kg |
| LanJ-3D06 |
400*300* 250mm |
520*540*650mm |
26L | 6 | 360W | 800W | 1~30mn | 20kg | 25kg | ||||
| LanJ-3D12 |
450*350* 300mm |
570*590*700mm |
45L |
12 | 720W | 1500W | 1~30mn | 25kg | 30kg | ||||
| LanJ-3D18 |
500*400* 350mm |
620*640*750mm |
60L | 18 | 1080W | 1500W | 1~30mn | AC220/240V，50/60Hz，30AMP | 35kg | 40kg | |||
| LanJ-3D24 |
550*400* 400mm |
670*640*800mm |
75L |
24 |
1440W | 3000W | 1~30mn | 50kg | 62kg | ||||
| LanJ-3D30 |
600*450* 400mm |
720*690*800mm |
88L | 30 | 1800W | 4500W | 1~30mn | 65kg | 80kg | ||||
| LanJ-3D36 |
600*450* 500mm |
720*690*850mm |
120L |
36 | 2160W | 4500W | 1~30mn | AC220/240V，50/60Hz，50AMP | 80kg | 95kg | |||
| LanJ-3D48 |
700*500* 500mm |
820*740*850mm |
150L |
48 |
2400W | 6000W | 1~30mn | 100kg | 125kg | ||||
| LanJ-3D72 |
800*600* 550mm |
920*840*900mm |
240L | 72 | 3600W | 9000W | 1~30mn | 140kg | 170kg | ||||
1、Determine the model
You can choose model through consultation. You can also understand the specifications and parameters and choose the model through the website. Our company can customize according to customer requirements. Welcome to the factory for inspection.
2、Inquiry
You can use telephone, online chat, messages, e-mail and other ways to get price and delivery term from sales manager.
3、Sign the contract
With product details and payment methods.
4、Payment
Payment will be made in accordance with the terms of the contract. Timely delivery will be arranged after payment.
5、Acceptance
When you receoved the machine, please check whether the outer packaging and goods are damaged. Also check the product model and quantity, as well as accessories. If the above happens, please take photos and contact with the sales staff.
6、After-sales service
1. Provide door-to-door installation and commissioning, technical personnel free guidance training;
2. After receiving feedback, we will give you response within 12 hours. We will come back to you with the solution within 36 hours;
3. We promise warranty for 18 months and provide to life-long maintenance. So you don’t need to worry about the after sales.
