Classification of the ultrasonic cleansing slot. The oil removal effect of ultrasonic cleaning machine.


The cleaning trough in the ultrasonic cleaning machine is one of the important parts of the ultrasonic cleaning machine. On the one hand, the tank is a container for cleaning fluid, on the other hand, it is an indispensable medium for the Ultrasonic transducer transmission of ultrasonic energy. The material and performance of ultrasonic cleaning trough directly affect the performance of the whole ultrasonic cleaning equipment. Here is a brief introduction to the ultrasonic cleaning machine cleaning cans of the common classification. Hope to help you choose ultrasonic cleaning equipment.

1, according to the material division: ultrasonic cleaning equipment cleaning trough generally uses stainless steel material, according to different materials, there are 201 stainless steel, 304 stainless steel, and 316 stainless steel. Among them, 304 stainless steel cleaning tank is more common, this kind of material cleaning tank is a good conductor of ultrasonic, with a certain degree of acid and alkali resistance, heat resistance, corrosion resistance in the atmosphere, good molding, easy welding, and stretching. 316 stainless steel cleaning tank, more for the health of higher ultrasonic cleaning equipment. The cleaning tank has stronger corrosion resistance and acid and alkali resistance, with 304 stainless steel with the same formability and weldability. With good tensile properties, in line with the national GMP equipment standards. 201 stainless steel cleaning tank for small ultrasonic cleaning machine shell and part of the cleaning tank, material than 304,316 stainless steel poor.

2. According to the forming process of the cleaning tank: the forming process of an ultrasonic cleaning tank, can be divided into stainless steel stretching tank, stainless steel welding tank, and immersion ultrasonic cleaning vibration plate. The small ultrasonic cleaning machine used in the laboratory mostly adopts the ultrasonic cleaning equipment of stainless steel stretching grooves. This kind of cleaning machine's appearance is exquisite and uses the high-frequency transducer more. They are often designed in an all-in-one fashion to make them easier to use. Industrial ultrasonic cleaning equipment used stainless steel welding grooves. This type of equipment usually uses 304 and 316 stainless steel. The wall thickness of stainless steel varies according to the workpiece being cleaned. Strong bearing capacity and acid and alkali resistance. Low-frequency and intermediate-frequency transducers are used. The double-layer fastening method of screw and glue is suitable for the long-term industrial production demand. The submerged ultrasonic cleaning vibrating plate cleaning machine is a kind of cleaning equipment that is not suitable for the cleaning field of a conventional cleaning tank.

Can an ultrasonic cleaning machine remove oil stains? The answer is naturally can, want to know the main function of ultrasonic cleaning machine is to remove oil and dirt.

The principle of ultrasonic oil removal: industrial ultrasonic cleaning machine to remove industrial oil pollution is the adhesion of oil products in the oil removal fluid with a certain frequency of ultrasonic radiation process, the introduction of ultrasound can strengthen the process of oil deposition, shorten the oil removal time, improve process quality, but also can make the blind hole of the oil clean thoroughly. The role of ultrasonic oil removal, to a large extent, is based on the role of air. When the Sonication is applied to a liquid, the instantaneous negative pressure and the instantaneous positive pressure are generated alternately, and many vacuum holes are created in the liquid during the half-cycle when the negative pressure is produced by vibration, liquid Vapors or gases dissolved in a solution enter the cavity to form bubbles, which are then compressed and burst during a half-cycle of positive pressure, creating a sudden burst of pressure (up to hundreds of MPA), it produces a huge shock wave, produces a strong agitation to the solution, and forms an impact force to scour the oil stains on the surface of the workpiece, which makes the oil stains in the deep pits and pores on the surface of the workpiece easy to remove, and strengthens the saponification and emulsifying effect, thus, the process of deoiling is accelerated and the deoiling is more thorough.

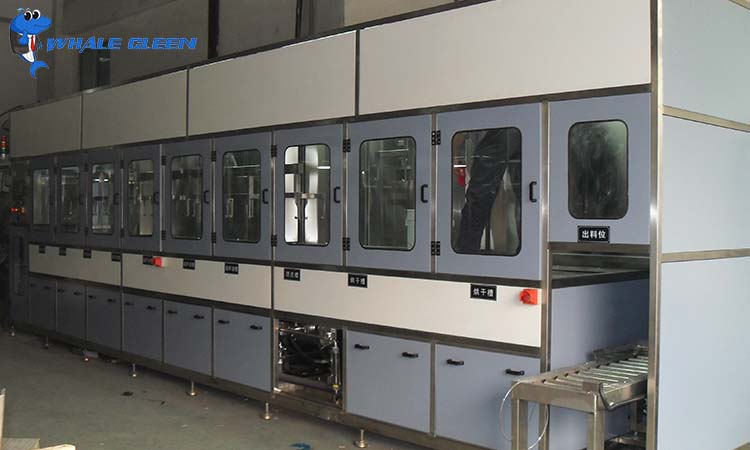

The advantages of ultrasonic cleaning machine oil: such as large industrial single-slot ultrasonic cleaning machine. This type of equipment is widely used in the hardware industry, the cleaning effect is very clean. It is usually used to remove oil and rust. For example, a large hardware parts manufacturer produces 30,000 hardware parts a day. Manual cleaning of this huge amount of extremely hard work, not only does it take a long time to clean, and cleaning is not thorough enough, especially in the gap of the dirt cleaning is not in place. If the use of an ultrasonic cleaning machine, cleaning the efficiency of hardware parts improved, and oil and rust removal effect cleaner.

Ultrasonic cleaning machine oil decontamination process:

1, the need to clean the oil-stained aluminum, metal parts, bearings, chains, molds, and other hardware parts into the cleaning basket, and then put the cleaning basket into the cleaning tank;

2, add water and pour in the right amount of oil remover;

3. Turn on the switch and adjust the time and temperature (the temperature is about 55 degrees, the best effect of cleaning oil), press the start button, and the ultrasonic cleaning machine will start working;

4, after cleaning, shut down (if set a good time do not press shut down, cleaning machine will stop by itself) ;

5. Pick up the cleaning basket and air-dry the hardware immediately

6. If you don't use it for the time being, do a good job cleaning machine maintenance.
